Tribok can do both
IO & gateway in one device
• Optimum sensor support
• AI running on the device
• 200kHz sample rate
Download info sheet ⬇
Traditional solutions have their weaknesses — but they are still standard in most companies.
In conventional setups, each IO-Link socket is connected via a separate gateway. Sensors deliver their data to the socket, and the gateway processes them further — two devices, two interfaces, double complexity. This costs space, time and money — but it's much easier.
Entdecken Sie die vielfältigen Einsatzmöglichkeiten deines Multihubs.
Less hardware, less effort — for a new standard in automation.
Tribok is your smart control center for recording and processing sensor signals. Robust, IoT-ready and AI-enabled, it offers a wide variety of possibilities for digitization and automation of all kinds with its 5 sensor connections for a wide range of digital and analog sensor types. The processor unit is ready to perform various types of tasks, from simple data forwarding to more sophisticated AI algorithms.
Save money
More space in the control cabinet
Reduced complexity

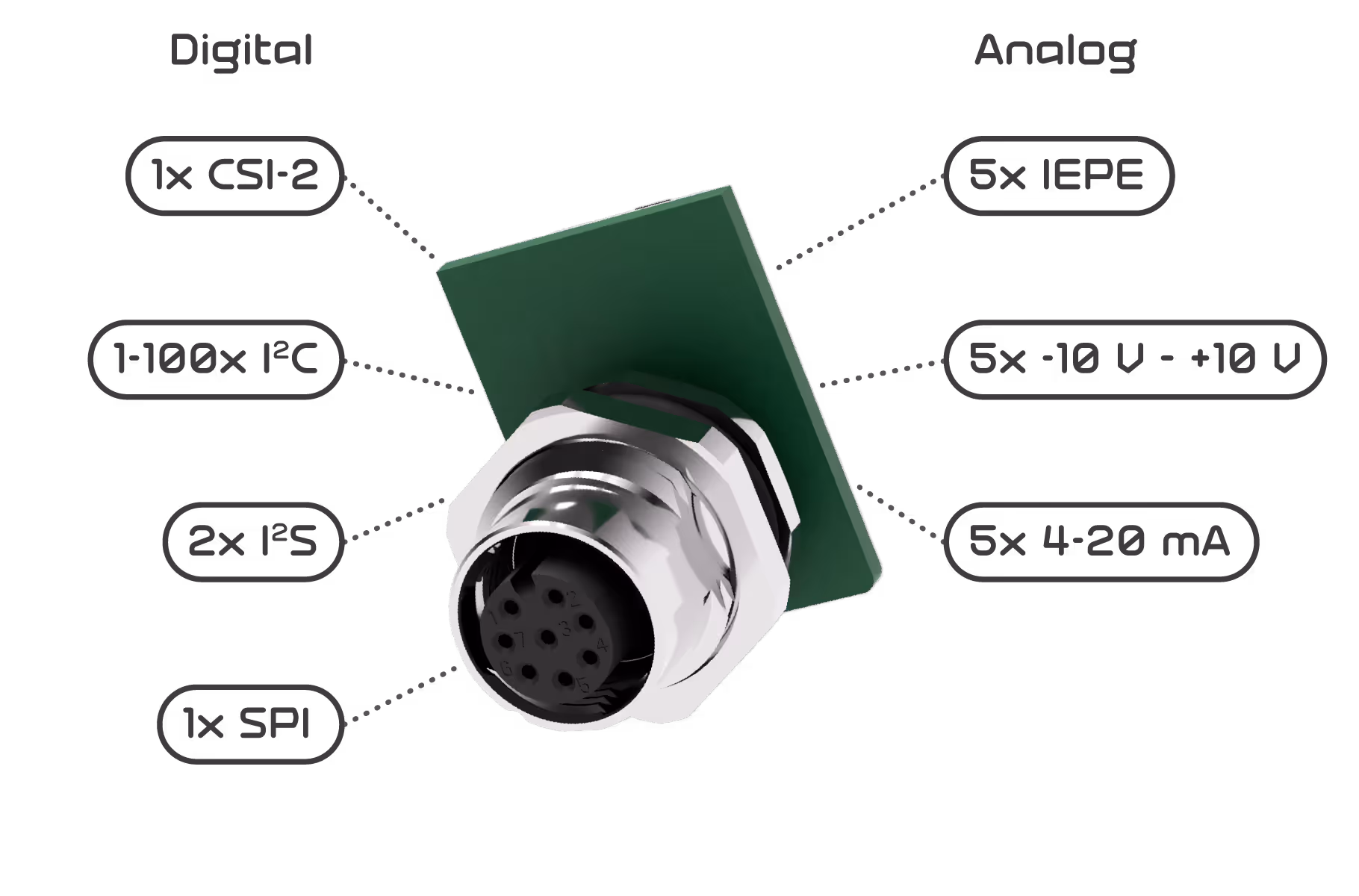

Configurable connections for unrestricted sensor selection
Die Sensorkonfiguration lässt sich flexibel und individuell an Ihre Anforderungen anpassen. Auf Anfrage bieten wir auch zusätzliche Anschlusstypen, um keine Wünsche offen zu lassen.
temperature
moisture
pressure
gas/pollution
light/brightness
movement/jolt
vibration/acoustics
camera
position/distance
filling level
rotation/angle
No restrictions on sensor selection
Data in very high sample rate
High-quality IEPE sensors for vibration
Built-in AI functionality
The powerful quad-core Cortex-A72 processor enables a wide range of applications - from simple processes to AI-supported automation directly on the device. This allows many tasks to be performed locally and reduces costly cloud usage.
Memory: 8GB RAM
Local storage: 512 GB
Quad core Cortex-A72 (ARM v8) 64 bit @ 1.8GHz
AI on the device
Large history of sensor data
Reduces cloud costs
Diverse communication options
The device supports a variety of communication interfaces such as WiFi, Ethernet, LoRaWAN, Modbus and more to ensure maximum flexibility in data transmission. This allows Tribok to be seamlessly integrated into a wide variety of networks and system environments.
WiFi
Ethernet
Bluetooth
LTE
Modbus
LoRaWAN
High level of security thanks to encrypted data carriers
By using encrypted memory disks, the device offers a high level of data security. Sensitive information is thus optimally protected against unauthorized access - both during operation and if the device is lost.
Encrypted memory disks
Robust casing with flexible mounting
The robust IP66 casing provides reliable protection against dust and water. Thanks to the interchangeable base plate, a wide range of application-specific mounting options can be easily implemented.
IP66 certified
Replaceable base plate
Proven platform using Raspberry Pi
Tribok is based on the Raspberry Pi and therefore benefits from a large community, extensive software support and easy expandability - ideal for individual IoT solutions.
Raspberry Pi based
Multihub: The IoT multi-tool
The rapid prototyping tool offers extensive opportunities to quickly get started in the world of AIoT. Developed specifically for industrial applications, Multihub combines powerful computing capabilities with a variety of sensors and uses Edge AI to collect, analyze and process data directly on site.
Easy configurability
Any sensor
Actorik
Edge AI
Suitable for industrial use
Ethernet, WiFi
Bluethooth, 4/5G & more
Weatherproof
housings
Sensory
Communication
Software
Hardware
Available Services
Tribok is a powerful and customizable IoT device for industrial applications such as monitoring and predictive maintenance.
The Tribok's analog and digital sensor slots are freely configurable. This means that a wide variety of sensors can be individually combined to meet the requirements of your application. This enables maximum flexibility in data acquisition and simplifies integration into existing systems. Whether temperature, vibration, humidity or other measured variables - Tribok adapts to your needs.
From the idea to your AIoT project in three steps.
Evaluate the economic and technical feasibility of your individual Tribok with us and we will configure it individually for your application.
1
The firmware can be flexibly adapted to individual requirements to ensure optimum functionality and integration into existing systems.
2
The device can be reordered at any time and in any quantity - for a reliable and scalable supply.
3
